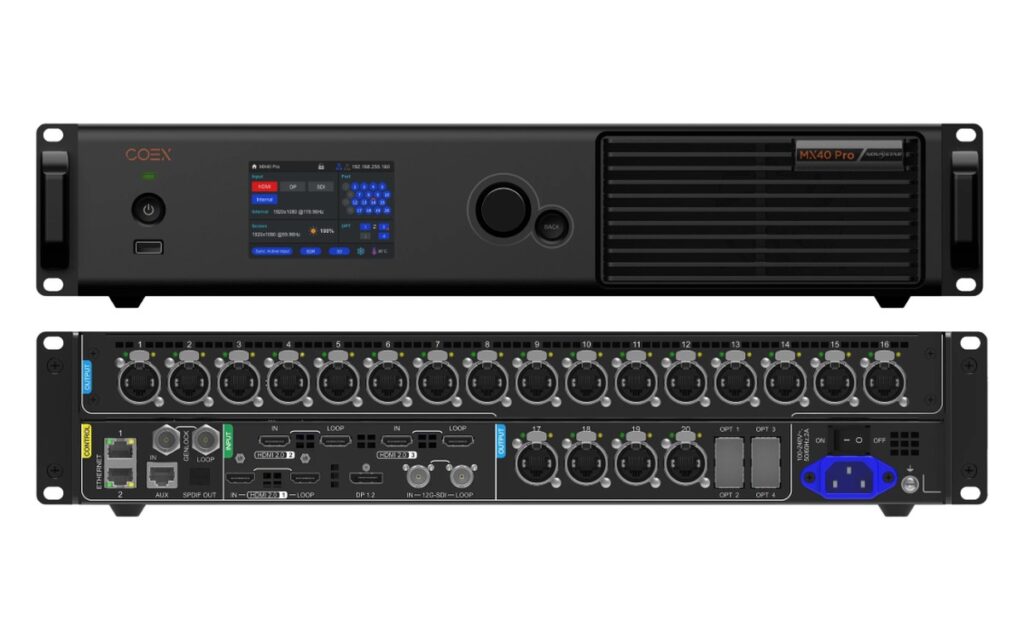

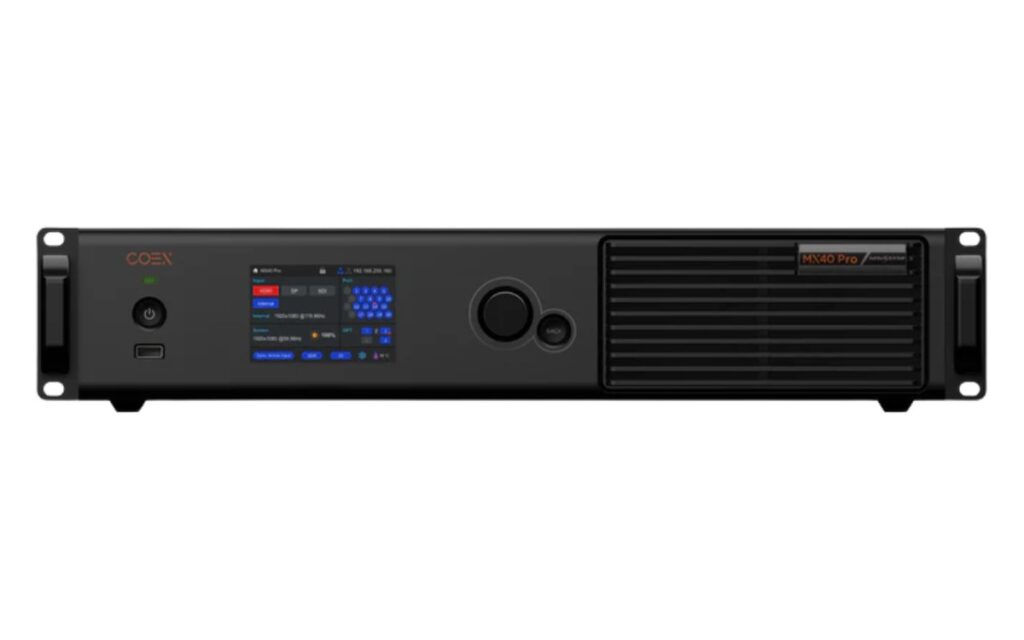

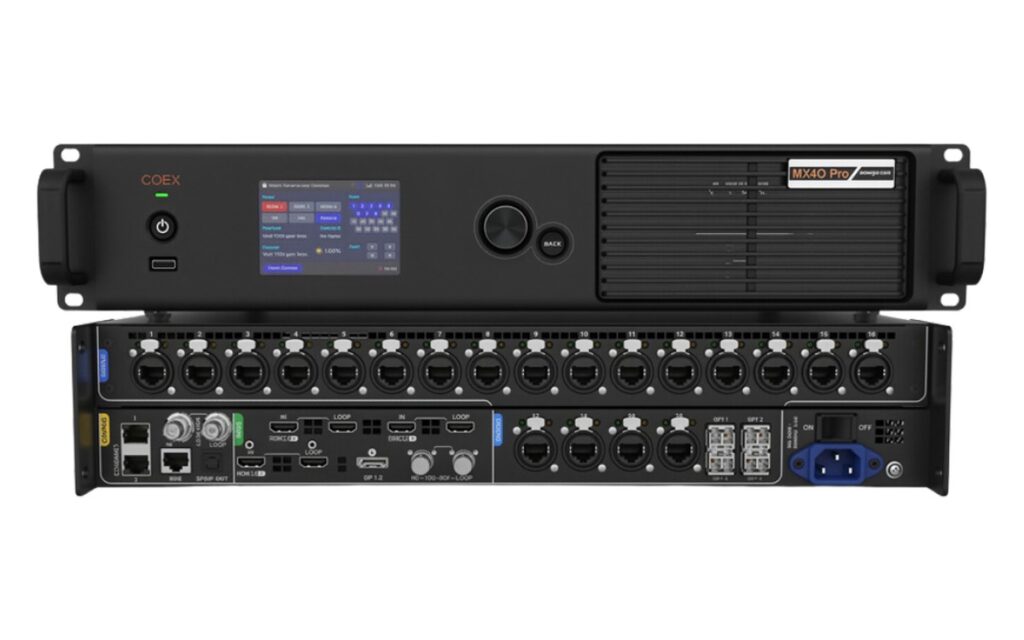

NovaStar MX40 Pro LED Display Controller
NovaStar MX40 Pro is a professional LED display controller for centralized screen management through VMP software. It supports device discovery, firmware upgrades, version rollback and direct Ethernet or network integration.
Key Features
- 9 Million loading capacity
- Dedicated control ports for low-latency management
- Grouped device management and batch upgrades
- Project file export and import for backup
- Ethernet-port and device backup redundancy
- Front-panel LCD with IP address reset
Technical Specifications
| Model | MX6000 Pro | MX2000 Pro | MX40 Pro | MX30 | MX20 | KU20 |
|---|---|---|---|---|---|---|
| Loading Capacity | 141 Million (Max) | 35.38 Million (Max) | 9 Million | 6.5 Million | 3.9 Million | 3.9 Million |
| Modular Design | ✓ | ✓ | × | × | × | × |
| Input Card Qty | 8 | 2 | N/A | N/A | N/A | N/A |
| Output Card Qty | 8 | 2 | N/A | N/A | N/A | N/A |
| Chassis Height | 6U | 2U | 2U | 2U | 1U | 1U |
| Input Interface | Input Card Options · Video-over-IP · MX_ 1×ST 2110 (25G) Input Card · MX_ 2×ST 2110 (25G) Input Card · MX_1×ST 2110 (100G) (8K@60Hz) Input Card · 8K Level · MX_ 2×HDMI 2.1 Input Card · MX_2×DP 1.4 Input Card · MX_ 1×DP 1.4 + 1×HDMI 2.1 Input Card · MX_1×DP 1.4(8K@60Hz) Input Card · 4K Level · MX_4×HDMI 2.0 Input Card · MX_4×DP1.2 Input Card · MX_4×12G-SDI Input Card | 3×HDMI 2.0 (IN+LOOP) · 1×DP 1.2 · 1×12G-SDI (IN+LOOP) | 1×HDMI 2.0 (IN+LOOP) · 1×HDMI 1.4 (IN+LOOP) · 1×DP 1.1 · 2×3G-SDI (IN+LOOP) | 2×HDMI 1.3 (IN+LOOP) · 1×3G-SDI (IN+LOOP) | 1×HDMI 1.3 (IN+LOOP) | |
| Input Bit Depth | 8bit · 10bit · 12bit | 8bit · 10bit · 12bit | 8bit · 10bit · 12bit | 8bit · 10bit | 8bit · 10bit | 8bit · 10bit (Custom) |
| Max. Input Width | 16384 | 16384 | 8192 | 8192 | 3840 | 3840 |
| Max. Input Height | 16384 | 16384 | 8192 | 7680 | 2560 | 2560 |
| Output Interface | Output Card Options · MX_4×10G Fiber Output Card (Work with Amor series) | 20×1G Neutrik · 4×10G OPT | 10×1G Neutrik · 2×10G OPT | 6×1G Neutrik · 2×10G OPT | 6×RJ45 · 1×10G OPT | |
| Layers | Up to 32×4K layers | Up to 8×4K layers | 4 | 3 | 3 | 1 |
| Note: 4×4K layers per output card | ||||||
| Max. Output Width | 16384 | 16384 | 16384 | 16384 | 4096 | 4096 |
| Max. Output Height | 16384 | 16384 | 16384 | 16384 | 4096 | 4096 |
| Genlock Type | Bi-level · Tri-level · Blackburst | Bi-level · Tri-level · Blackburst | Bi-level · Tri-level · Blackburst | Bi-level · Tri-level · Blackburst | Bi-level · Tri-level · Blackburst | x |
| Lock to Reference Source | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Lock to Internal Timing | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
