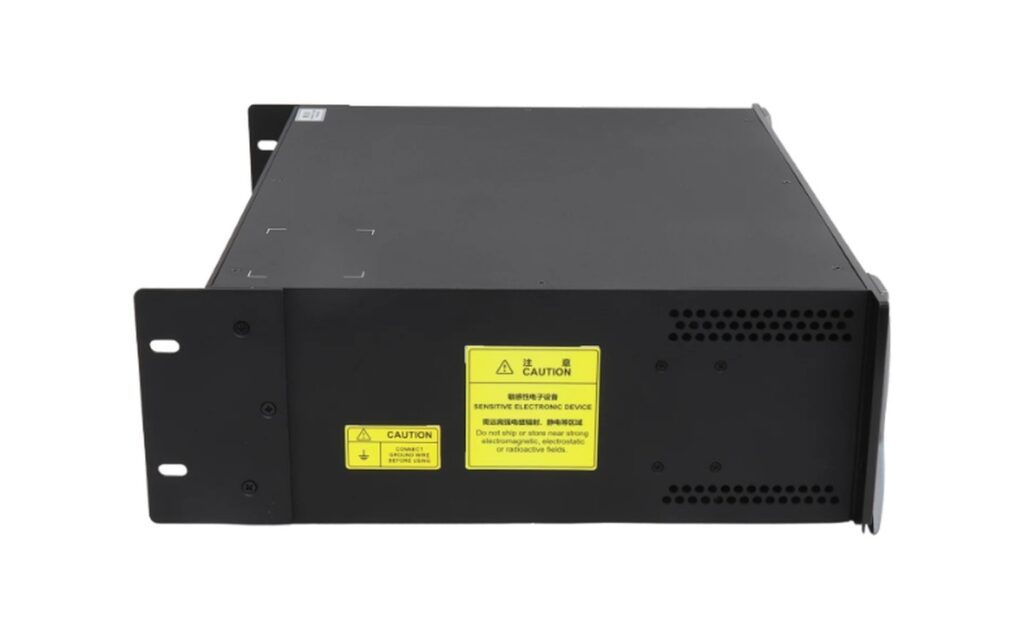

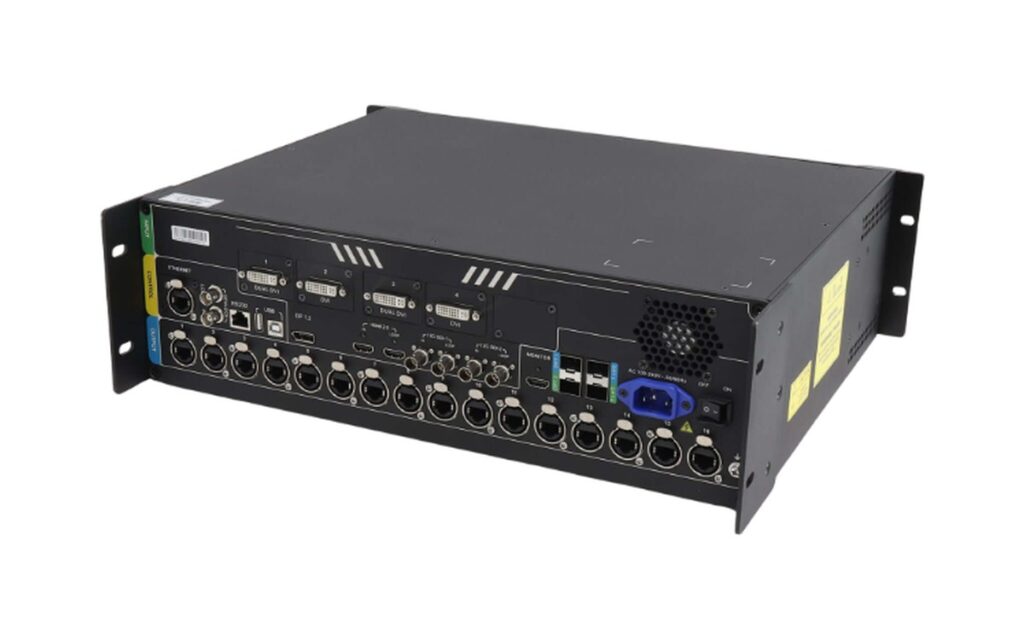

NovaStar NovaPro UHD Jr 4K All-in-One Controller
NovaStar NovaPro UHD Jr combines video processing and LED control for stage, exhibition and fine-pitch LED applications. It supports inputs up to 4K×2K@60Hz and 8K×1K@60Hz.
Key Features
- One main layer plus two PIP layers for flexible layouts
- Cascade support for synchronized large-screen mosaics
- 16 Neutrik Gigabit Ethernet outputs, loading capacity up to 10,400,000 pixels
- Four 10G optical connectors with copy and hot backup modes
- Controller and fiber converter operating modes
- Supports HDR10, low-latency processing and 3D display mode tools
- V-Can software for image mosaic and system management
Technical Specifications

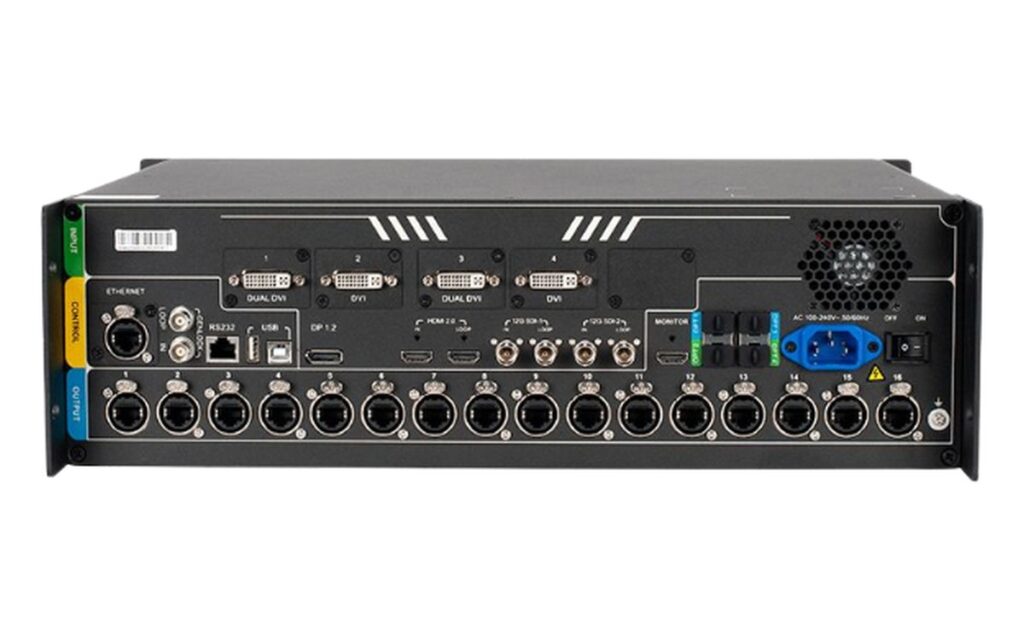

| Model | Quantity | Description |
|---|---|---|
| Input – DVI | 4 | Four DVIs are all single-link DVI connectors by default. · 4x DVI inputs · Each DVI: Input resolution up to 2048×1152@60Hz, downward compatible · 4 DVI input sources constitute 1 input source (DVI MOSAIC). · Max. width: 3840 pixels. Max. height: 3840 pixels · In dual-link mode. · DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable. · DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz, downward compatible. · 2 DVI input sources constitute 1 input source (DVI MOSAIC). · Max. width: 3840 pixels. Max. height: 3840 pixels · Supports input resolution settings. · HDCP 1.4 compliant · Does not support interlaced signal inputs. |
| Input – 12G-SDI | 2 | Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. · Input resolution up to 4096×2160@60Hz, downward compatible · Supports interlaced signal inputs. · Does not support input resolution and bit depth settings. · Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels |
| Input – DP 1.2 | 1 | Input resolution up to 3840×2160@60Hz, downward compatible · HDCP 1.3 compliant · Supports input resolution settings. · Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels · Does not support interlaced signal inputs. |
| Input – HDMI 2.0 | 1 | Input resolution up to 3840×2160 @60Hz, downward compatible · HDCP 2.2 compliant · Supports input resolution settings. · Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels · Does not support interlaced signal inputs. |
| Output – Ethernet port | 16 | 16x Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels. · Maximum loading capacity: Max. width: 16384 pixels, max. height: 8192 pixels · Maximum loading capacity of a single Ethernet port: 8-bit input source: 650,000 pixels. · 10-bit/12-bit input source: 320,000 pixels. |
| Output – OPT 1–4 | 4 | 10G optical connectors · Copy and hot backup modes are available when four OPT ports are all used for output. · OPT 1 transmits data of Ethernet ports 1–8. · OPT 2 transmits data of Ethernet ports 9–16. · OPT 3 serves as the copy/hot backup for OPT 1. · OPT 4 serves as the copy/hot backup for OPT 2. |
| Output – HDMI 2.0 LOOP | 1 | HDMI loop output · Only 1 level of device cascading supported · HDCP 2.2 compliant · EDID management supported |
| Output – 12G-SDI LOOP | 2 | SDI loop output |
| Output – MONITOR | 1 | An HDMI connector dedicated for output monitoring · Resolution up to 1920×1080@60Hz |
| Control – ETHERNET | 1 | Connect to the PC for communication, or connect to the Web for device control. |
| Control – USB (Type-B) | 1 | Connect to the PC for device control. · Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic |
| Control – USB (Type-A) | 1 | Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic |
| Control – GENLOCK IN-LOOP | 1 | UConnect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units. |
| Control – RS232 | 1 | Connect to the central control device. |
