NovaStar Taurus TB60 – product main view

NovaStar Taurus TB60

Name: NovaStar Taurus TB60
Brand: LINEX TECH
Availability: InStock

LED Video Processors & Controllers

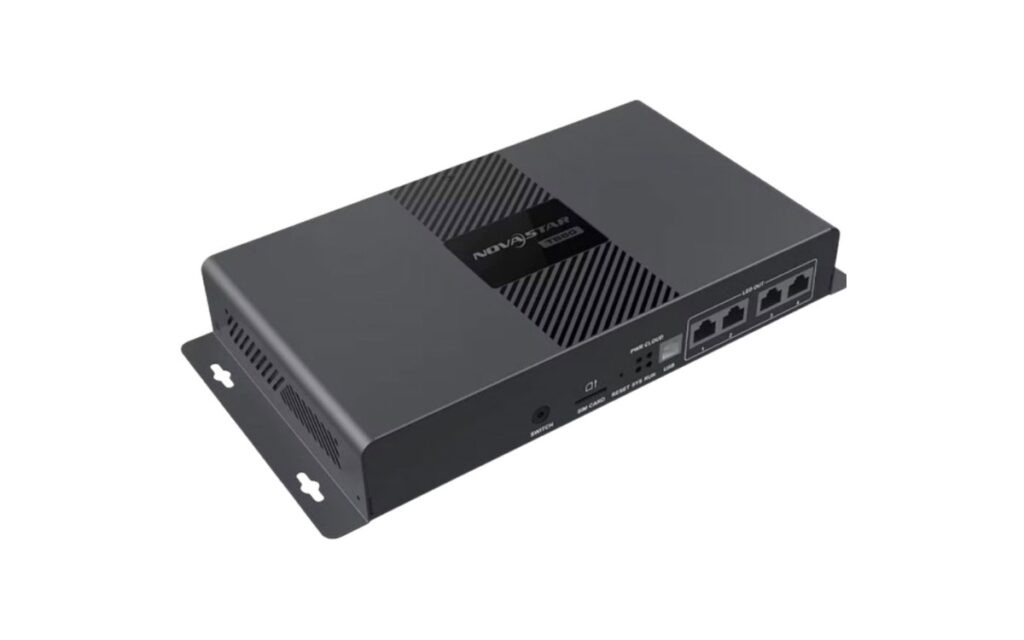

The NovaStar Taurus TB60 is a 4K multimedia player for commercial LED displays, digital billboards and complex signage. It supports up to 2.3 million pixels, with four Gigabit Ethernet ports for flexible wiring and redundancy.

Key Features

Up to 2.3 million pixels, maximum width/height of 4096 pixels
4K H.264/H.265 decoding at 60Hz
HDMI 1.4 input for synchronous, internal asynchronous playback
HDMI loop output for cascading multiple units
Four Gigabit Ethernet ports configurable as primary/backup pairs
VNNOX cloud platform for remote publishing and screen monitoring
Dual sensor connectors for brightness and environmental adjustment

Get a Quote WhatsApp Us

How we test and pack this order →

Technical Specifications

Model	TB10 Plus	TB20 Plus	TB30	TB50	TB60
Max. Loading Capacity	0.65 Million Pixels	0.65 Million Pixels	0.65 Million Pixels	1.3 Million Pixels	2.3 Million Pixels
Max. Width & Height	Normal Scenario: Max.Width 2048 or Max.Height 2048 · Ultra-wide screen: Max. Width 8192 or Max.Height 2048	Normal Scenario: Max.Width 2048 or Max.Height 2048 · Ultra-wide screen: Max. Width 8192 or Max.Height 2048	Max.Width 4096 or Max.Height 4096	Max.Width 4096 or Max.Height 4096	Max.Width 4096 or Max.Height 4096
CPU	Quad-core A53@1.4GHz	Quad-core A53@1.4GHz	Quad-core A55@1.8GHz	Quad-core A55@1.8GHz	Quad-core A55@1.8GHz
RAM+ROM	2GB+32GB	2GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Storage Expansion	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G
Video Decoding	4K@60Hz	4K@60Hz	4K@60Hz	4K@60Hz	4K@60Hz
OS	Android 10.0	Android 10.0	Android 11.0	Android 11.0	Android 11.0
Playback	1x 4K · or 2x 1080p · or 4x 720p · or 4x 480p · or 20x 360p	1x 4K · or 2x 1080p · or 4x 720p · or 4x 480p · or 20x 360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p
Multi-device Synchronous Playback	√	√	√	√	√
Synchronous and Asynchronous Switching	×	√	×	√	√
HDMI Cascading Playback	×	×	×	√ (1080P, Max. up to 10 devices)	√ (1080P, Max. up to 10 devices)
Sensor Access	⃝	⃝	⃝	⃝	⃝
Audio Output	√	√	√	√	√
USB Driver Display	√(USB2.0)	√(USB2.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)
Wired Network	100 Mbps	100 Mbps	1 Gbps	1 Gbps	1 Gbps
Wi-Fi	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode
4G Network	⃝	⃝	⃝	⃝	⃝
Certifications	√	√	√	√	√
VNNOX Care/VNNOX Media	√	√	√	√	√
NovaStar SDK	√	√	√	√	√
Bare Product	×	×	√(T30)	√(T50)	×
