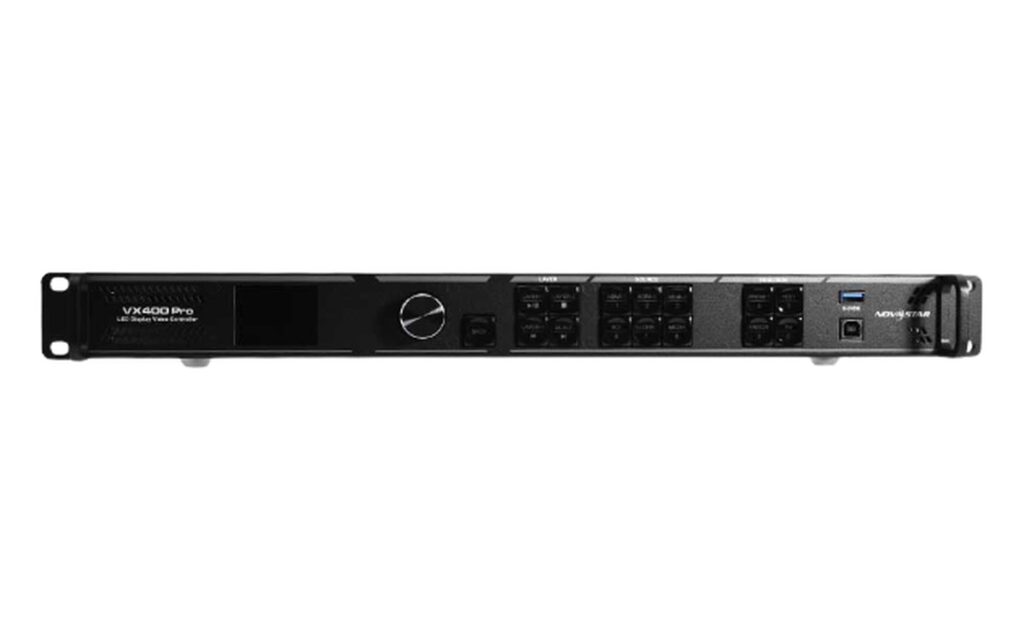

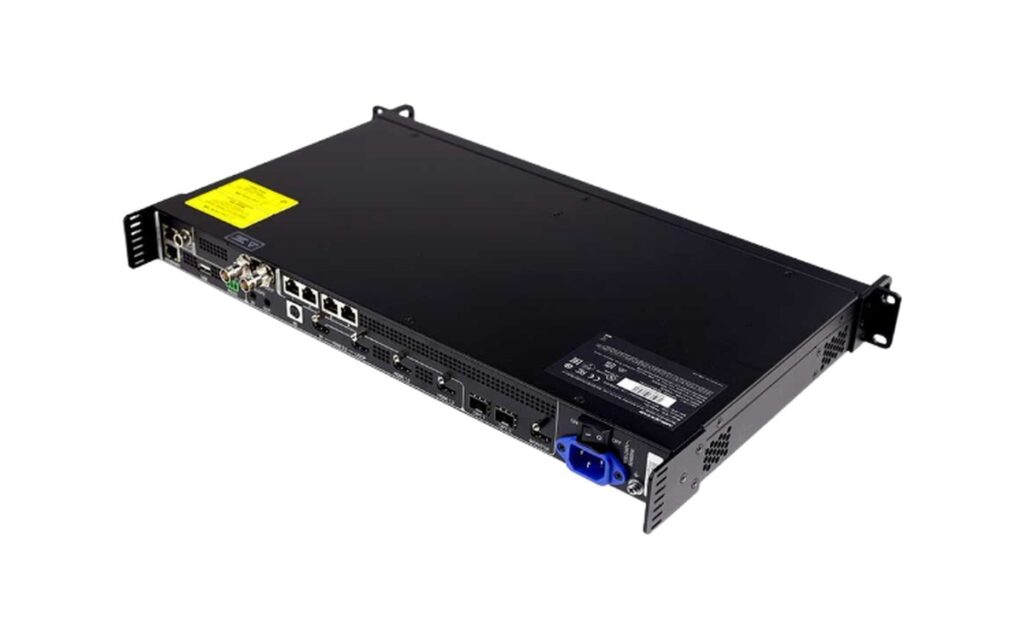

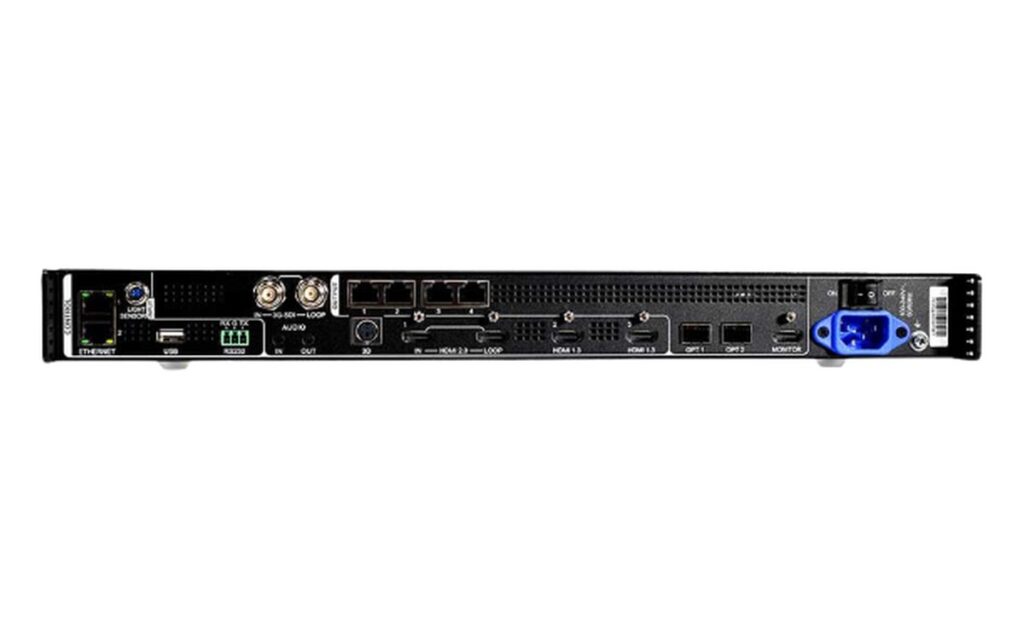

NovaStar VX400 Pro LED Video Controller
The NovaStar VX400 Pro is an all-in-one video processor and LED controller for professional rental and stage applications. It supports up to 2.6 million pixels and a maximum output width of 10,240 pixels.
Key Features
- Up to 2.6 million pixels
- Maximum output width of 10,240 pixels
- HDMI 2.0, 3G-SDI and 10G optical fiber I/O
- Works as controller, fiber converter or bypass device
- Device, source and Ethernet-port backup
- Front panel, NovaLCT, Unico or VICP control
Technical Specifications
| Model | VX400 Pro | VX600 Pro | VX1000 Pro | VX2000 Pro |
|---|---|---|---|---|
| Loading Capacity | 2.6 million pixels | 3.9 million pixels | 6.5 million pixels | 13 million pixels |
| Max Width (pixels) | 10240 | 10240 | 10240 | 16384 |
| Max Height (pixels) | 8192 | 8192 | 8192 | 8192 |
| Layers | 6 *2K×1K | 6 *2K×1K | 6 *2K×1K | 12 *2K×1K |
| Input Connectors | 1× HDMI 2.0（IN&LOOP） · 2× HDMI 1.3 · 1× 3G-SDI（IN&LOOP） · 1× 10G OPT Port（OPT1） · 1× USB3.0 | 1× HDMI 2.0（IN&LOOP） · 2× HDMI 1.3 · 1× 3G-SDI（IN&LOOP） · 1× 10G OPT Port（OPT1） · 1× USB3.0 | 1× HDMI 2.0（IN&LOOP） · 2× HDMI 1.3 · 1× 3G-SDI（IN&LOOP） · 1× 10G OPT Port（OPT1） · 1× USB3.0 | 1× 12G-SDI(IN&LOOP) · 1× DP 1.2 · 2× HDM 2.0 · 4× HDMI 1.3 · 2× OPT · 1× USB3.0 |
| Output Connectors | 4× Ethernet Ports · 1× HDMI1.3 · 1× HDMI 2.0 LOOP · 1× 3G-SDI LOOP · 2× OPT | 6× Ethernet Ports · 1× HDMI1.3 · 1× HDMI 2.0 LOOP · 1× 3G-SDI LOOP · 2× OPT | 10× Ethernet Ports · 1× HDMI1.3 · 1× HDMI 2.0 LOOP · 1× 3G-SDI LOOP · 2× OPT | 20× Ethernet Ports · 1× HDMI1.3 · 4× OPT · 1× 12G-SDI LOOP · 4× OPT |
| Presets | 256 | 256 | 256 | 256 |
| Control Connectors | 2× Ethernet Port · 1× USB | 2× Ethernet Port · 1× USB | 2× Ethernet Port · 1× USB | 2× Ethernet Port · 1× USB |
